GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002
GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002
GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002

GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002

Ürün ayrıntıları:
Marka adı: GE
Model numarası: MAC5000
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Normal Paket
Teslim süresi: 1-2 gün
Ödeme koşulları: Banka havalesi, Western Union, PayPal
Yetenek temini: 30
Şimdi başvurun
  • Detay Bilgi
  • Ürün Açıklaması

Detay Bilgi
Modeli: MAC5000 Hisse senetleri: Mevcut
Envanter Durumu: Şu an müsait tip: GE
Ürün kataloğu: EKG Wattanty: 90 gün
Nakliye: DHL, EMS, UPS, ACS vb. Anahtar kelimeler: Modül, tıbbi aksesuarlar
Uyumluluk: Üniversal EKG Makineleri Net ağırlığı: 0.3kg

Ürün Açıklaması

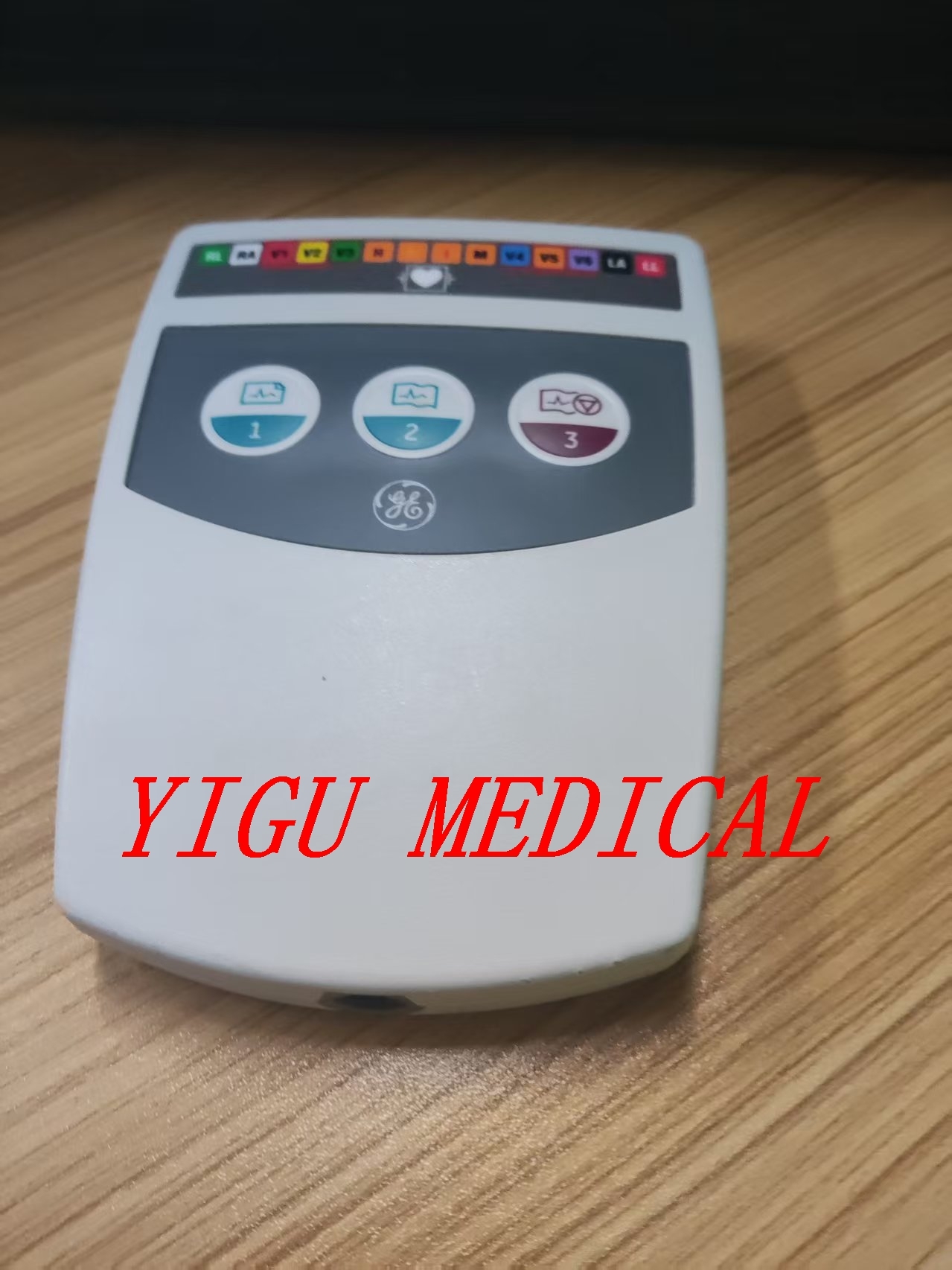

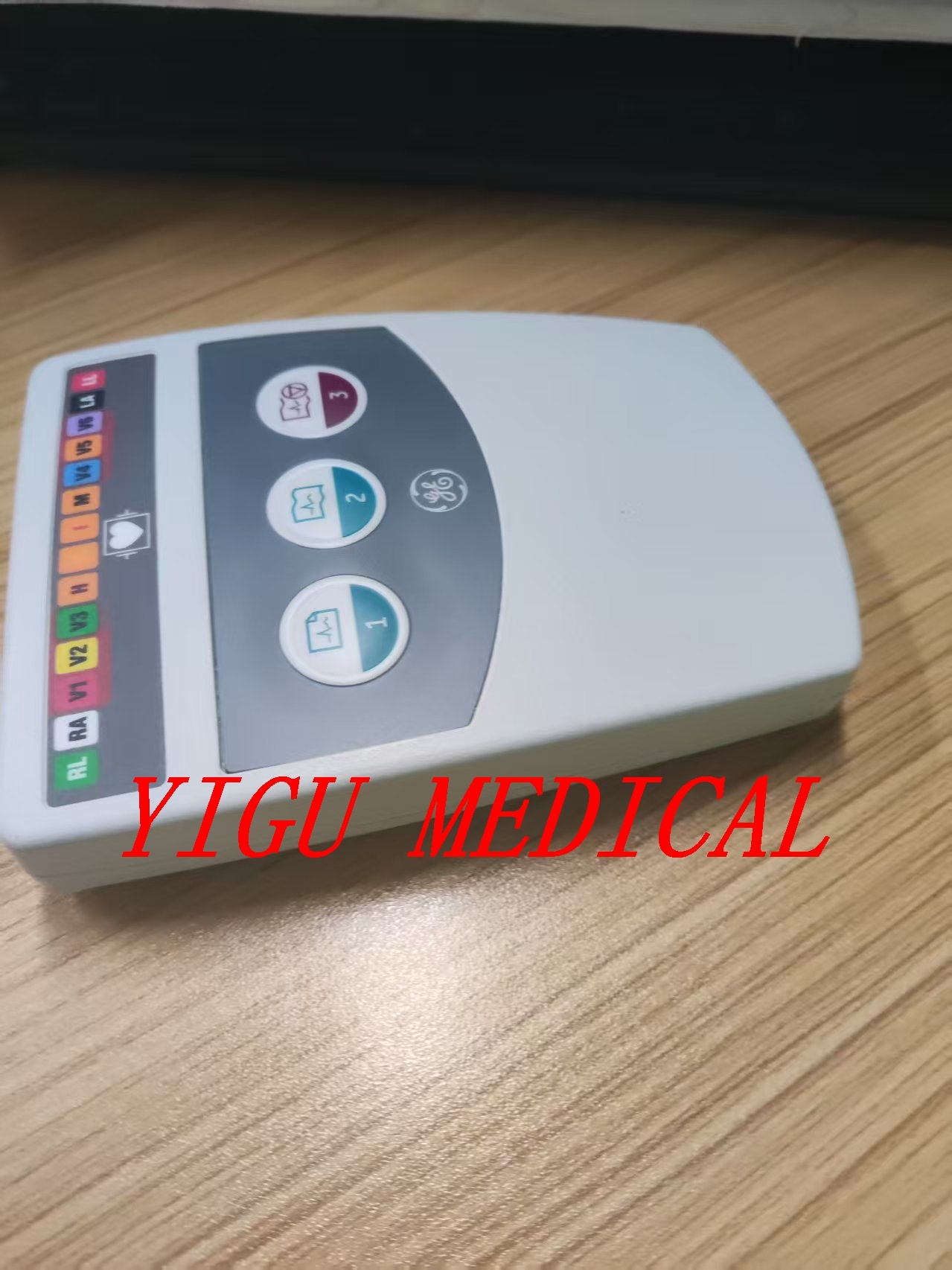

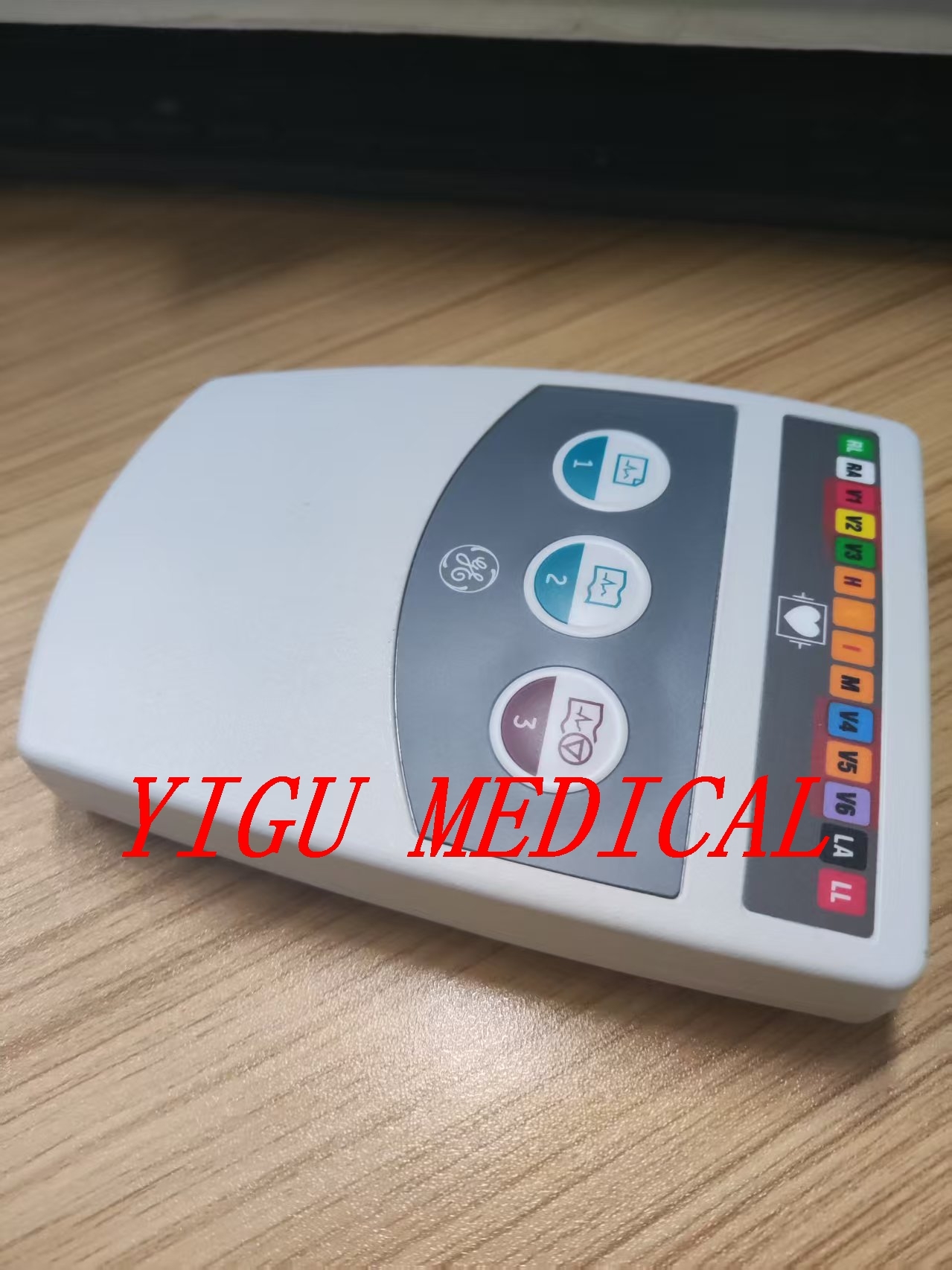

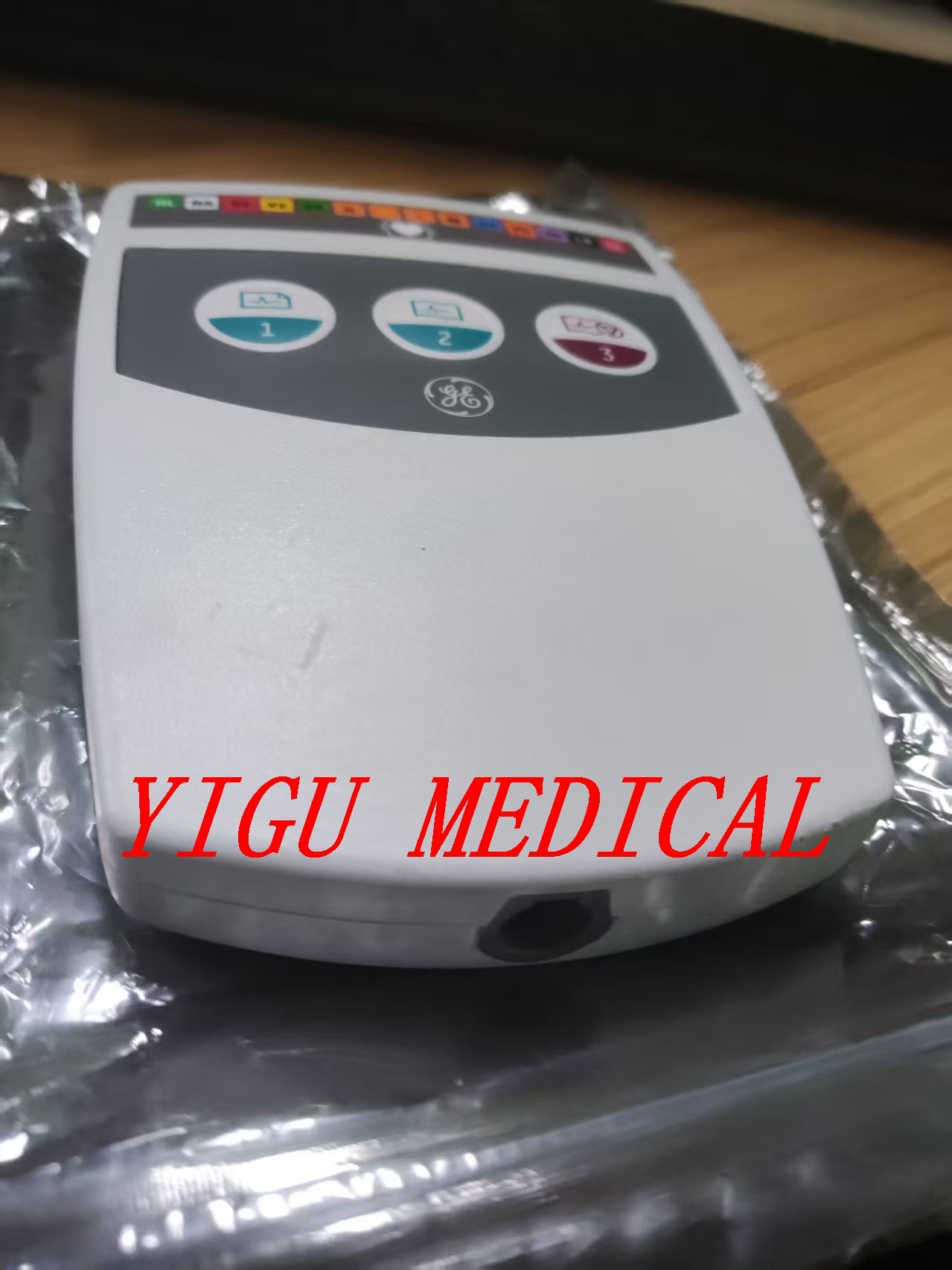

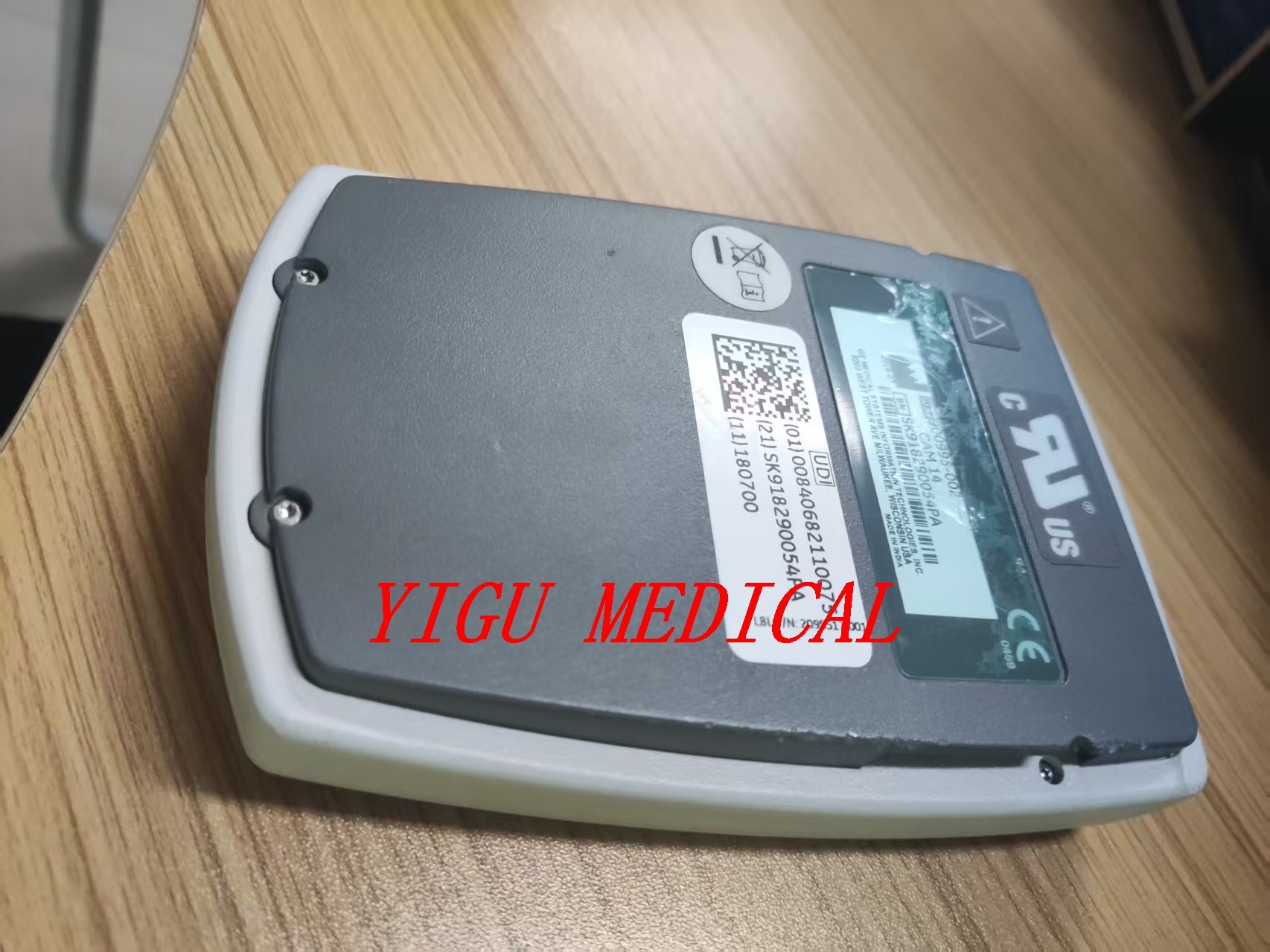

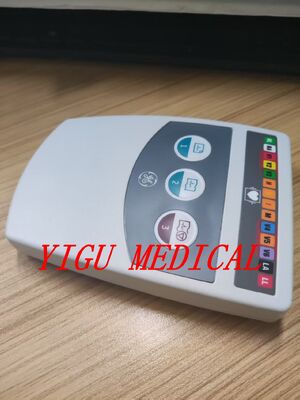

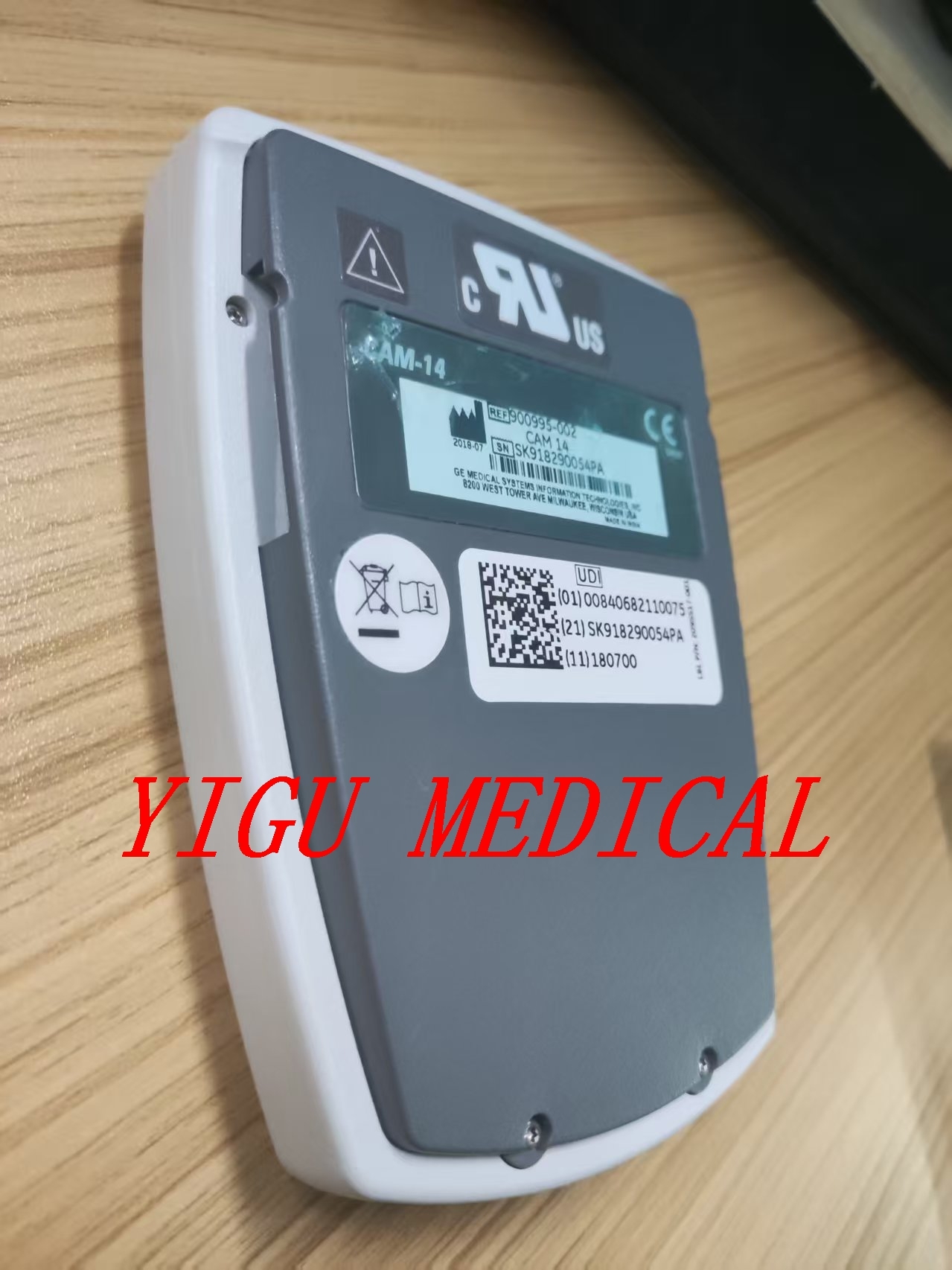

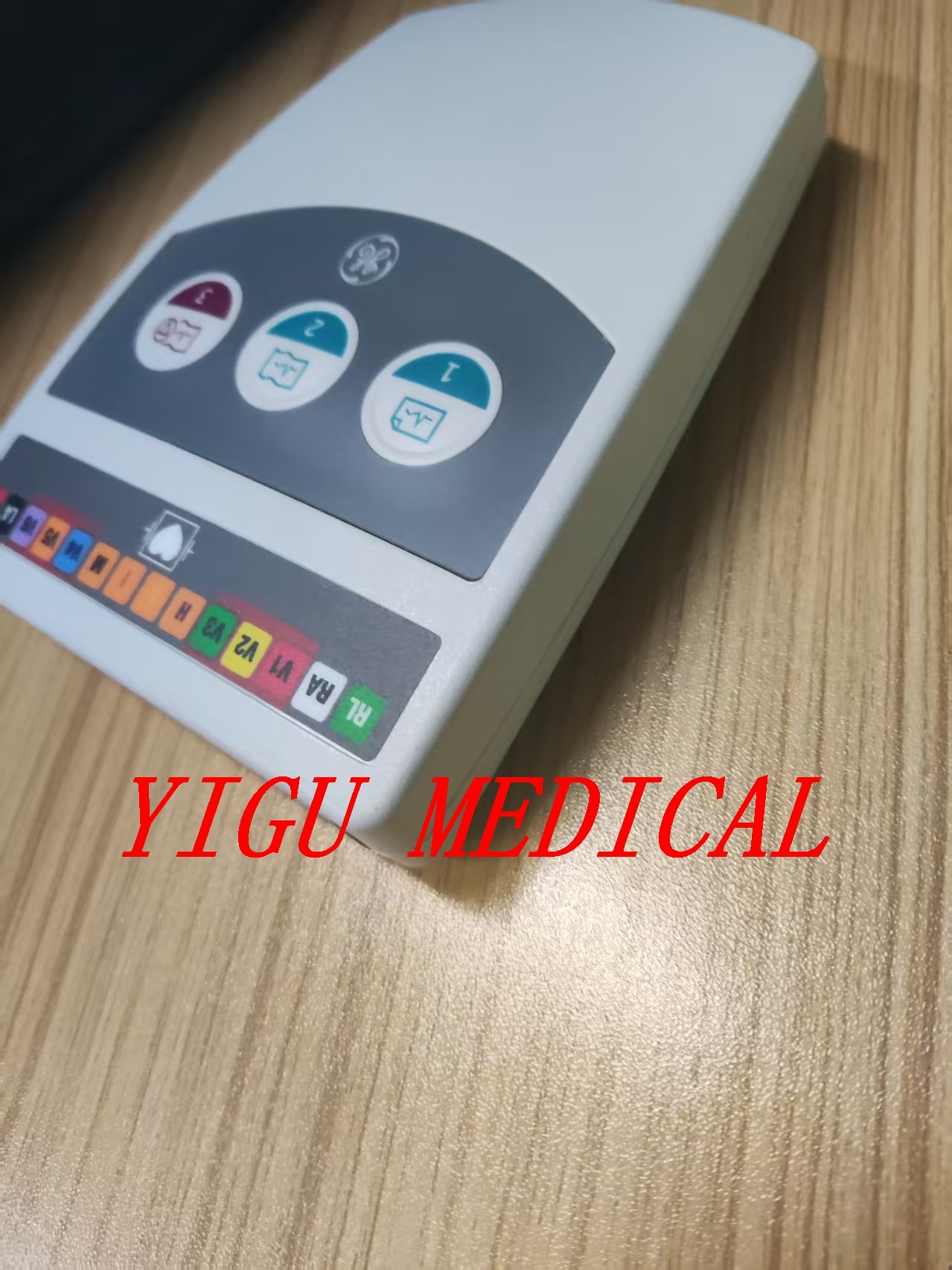

GE Marquette MAC 5000 / MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002
Product Overview

The CAM 14 (Cardiac Acquisition Module) is a modular, external patient data acquisition device designed for the GE Marquette MAC 5000 ECG Analysis System. Its primary function is to acquire analog ECG signals from patients, digitize them, and transmit the data to the host unit for processing, analysis, and printing. By positioning the acquisition module closer to the patient, this design enhances signal fidelity and reduces noise, resulting in clearer ECG traces.

Technical Specifications & Features
Feature Specification / Description
Primary Function Acquires analog ECG signals, digitizes them, and transmits to host unit
Sampling Rate 4000 Hz for high-resolution signal capture
Patient Safety Electrical patient isolation protects host unit from cardiac defibrillator discharge effects
Lead Support Supports various configurations including standard 10-wire (AHA/IEC), 14-wire, and pediatric setups
Key Features AC lead fail bias, lead-off detection, Hi-Res analysis on 14-lead units, function key control of host equipment
Power Requirement Draws 12V DC power directly from host unit; no separate battery or power cord needed
Firmware Updates Software updated via floppy diskette from host MAC 5000 unit
Connectivity and Compatibility
  • Connection: Connects to MAC 5000 host unit via dedicated interface cable
  • Leadwires: Uses specific 10-lead wire sets with Banana, Pinch, or Snap connectors for ECG electrodes
  • Host Compatibility: Compatible with GE Healthcare systems including MAC 5500, CardioSoft, and CASE Stress Test Systems
Important Model and Regulatory Notes

Predecessor Models: The CAM 14 (model number K991735) is the specific acquisition module referenced in the MAC 5000's clearance. It has since been succeeded or supplemented by the CAM-HD (High Definition) module, identified by part numbers like 900995-003.

Service Information: The internal Printed Circuit Board (PCB) assembly includes specific integrated circuits (ICs) and flash memory that must be programmed during manufacturing or repair.

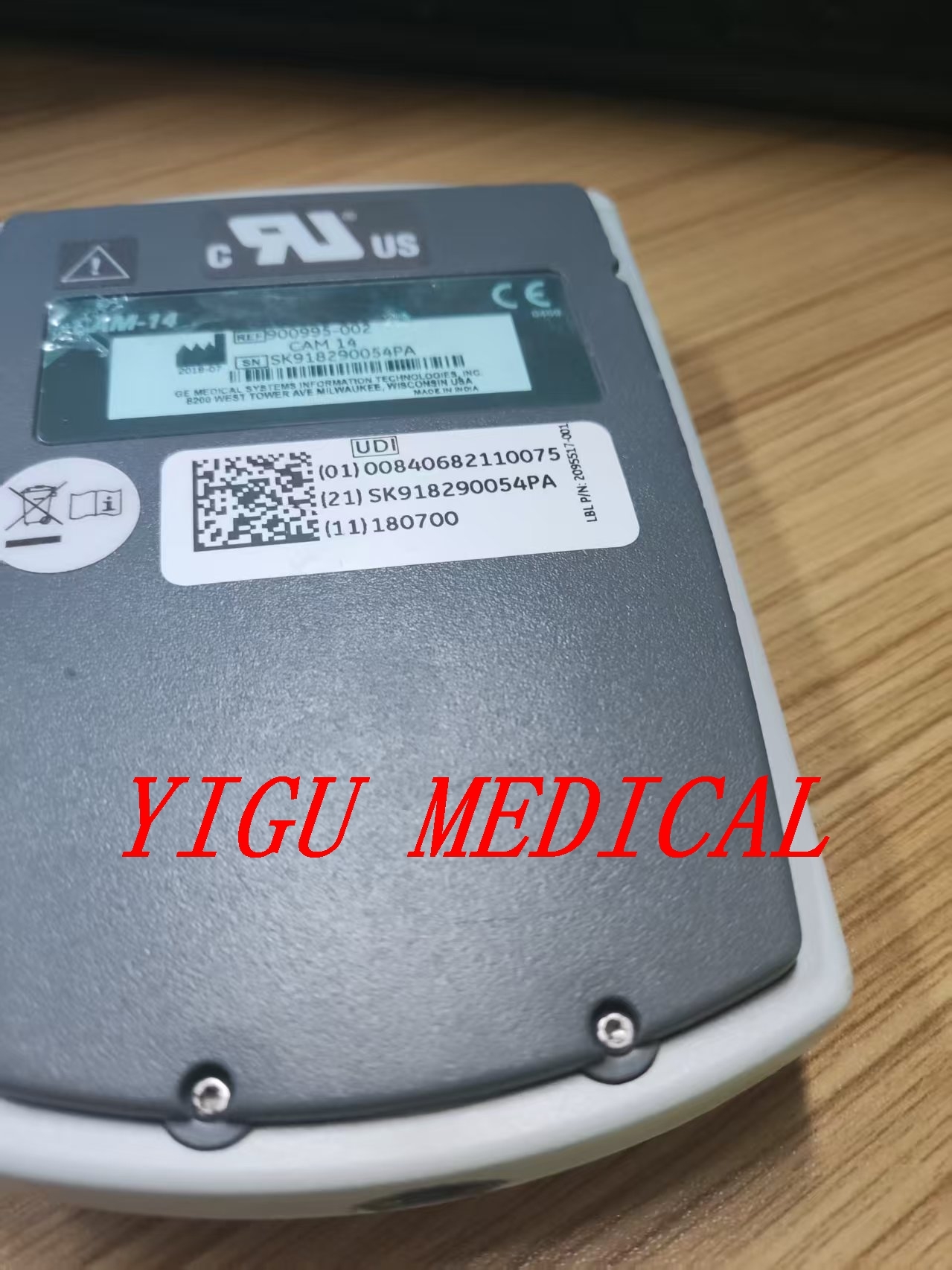

Product Images
GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 0 GE Marquette MAC 5000 /MAC5500HD CAM 14 Module for ECG Cardiac Acquisition Module PN 900995-002 1
