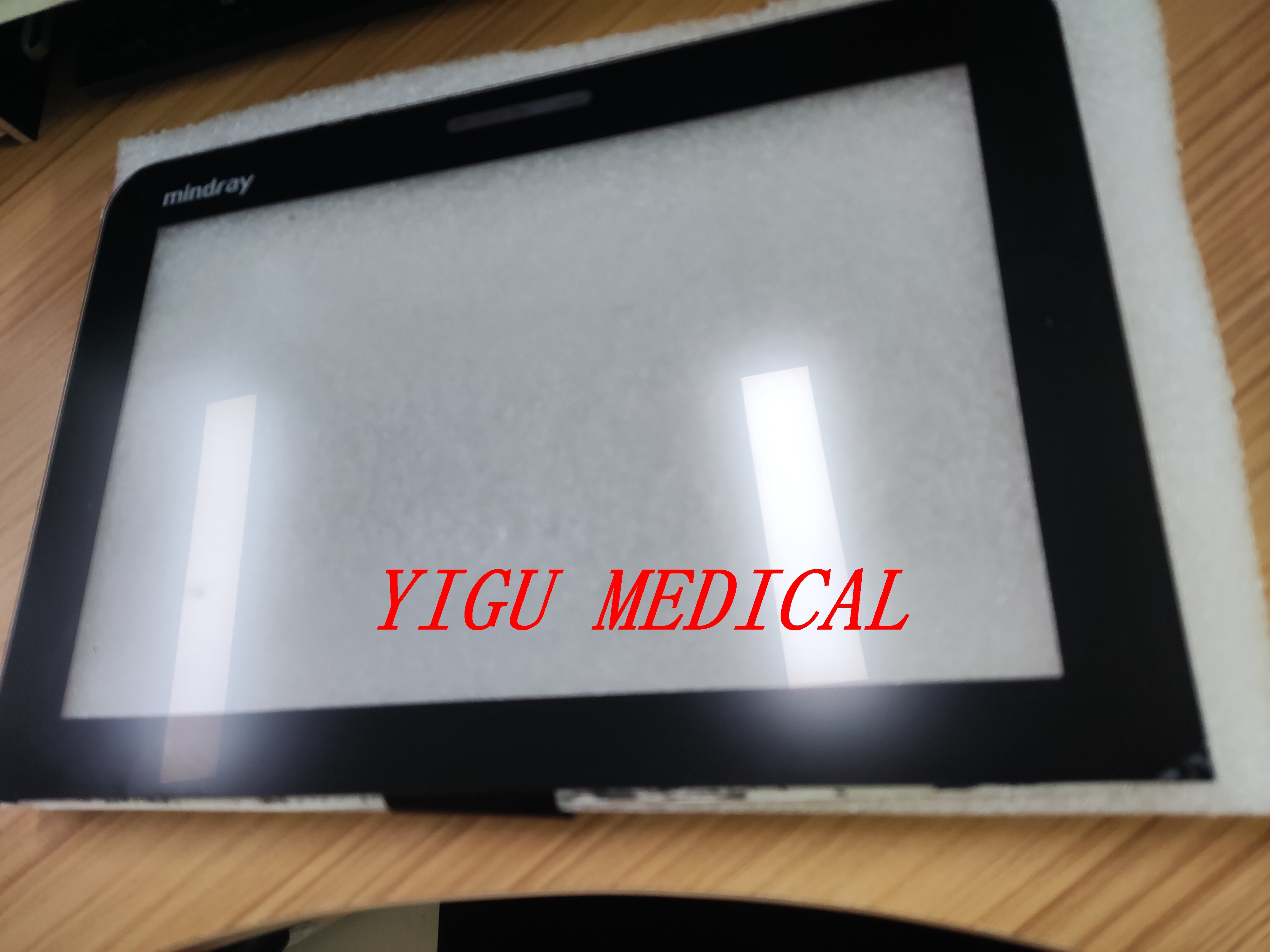

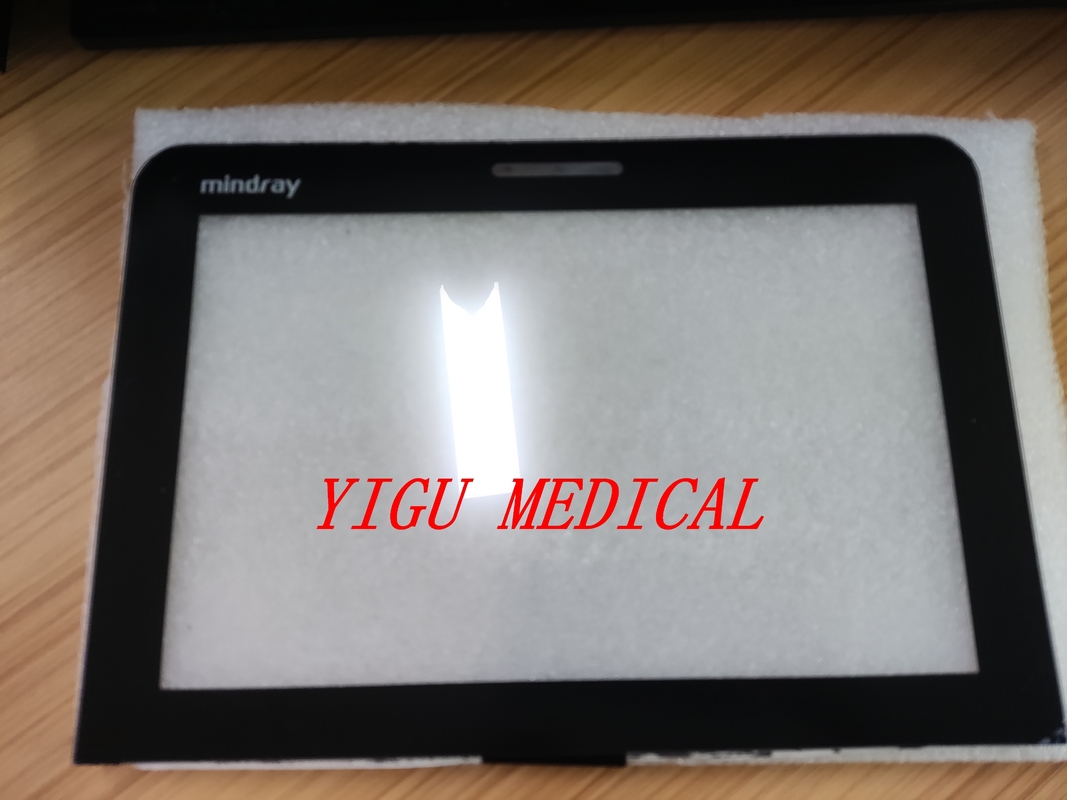

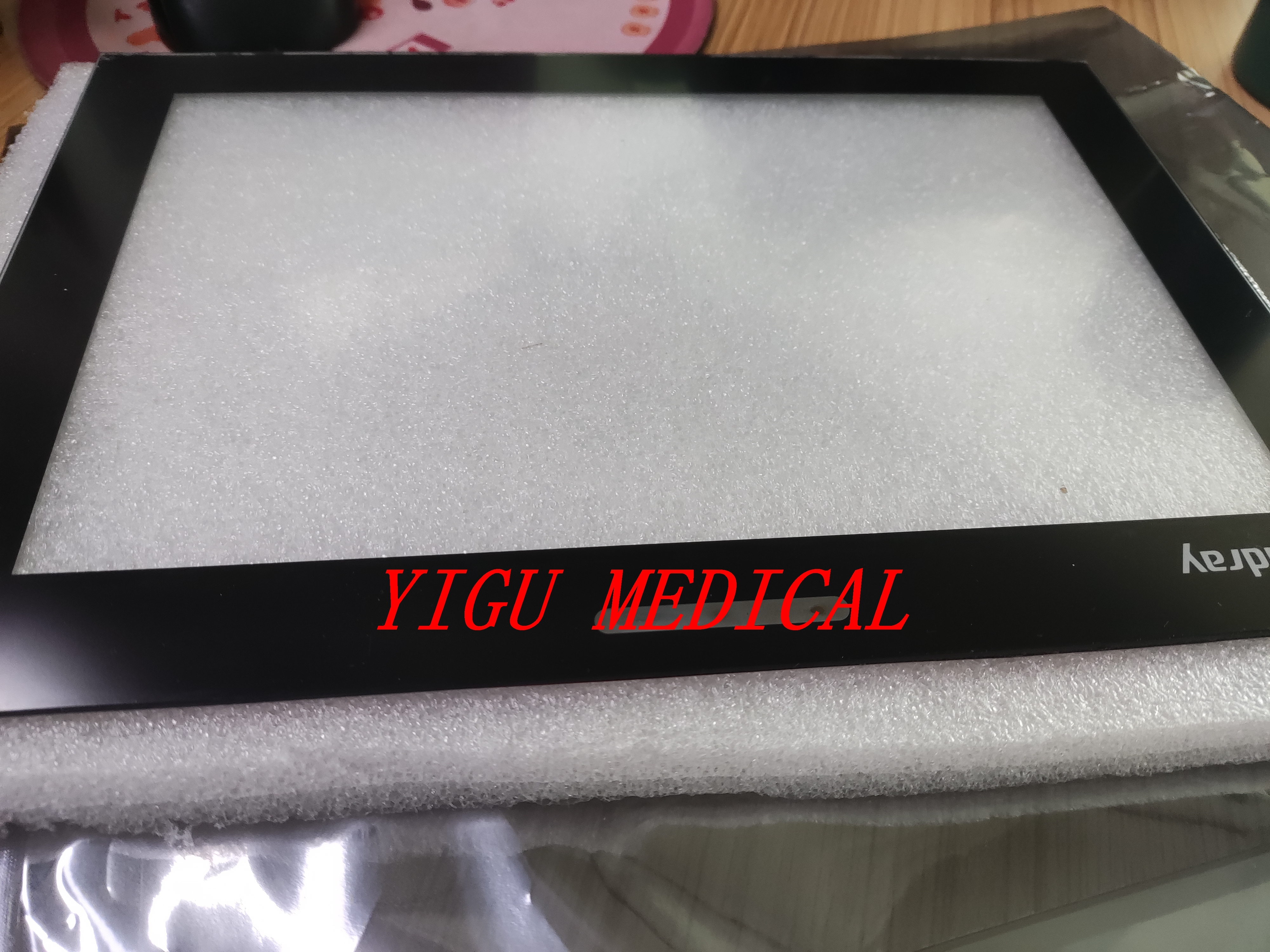

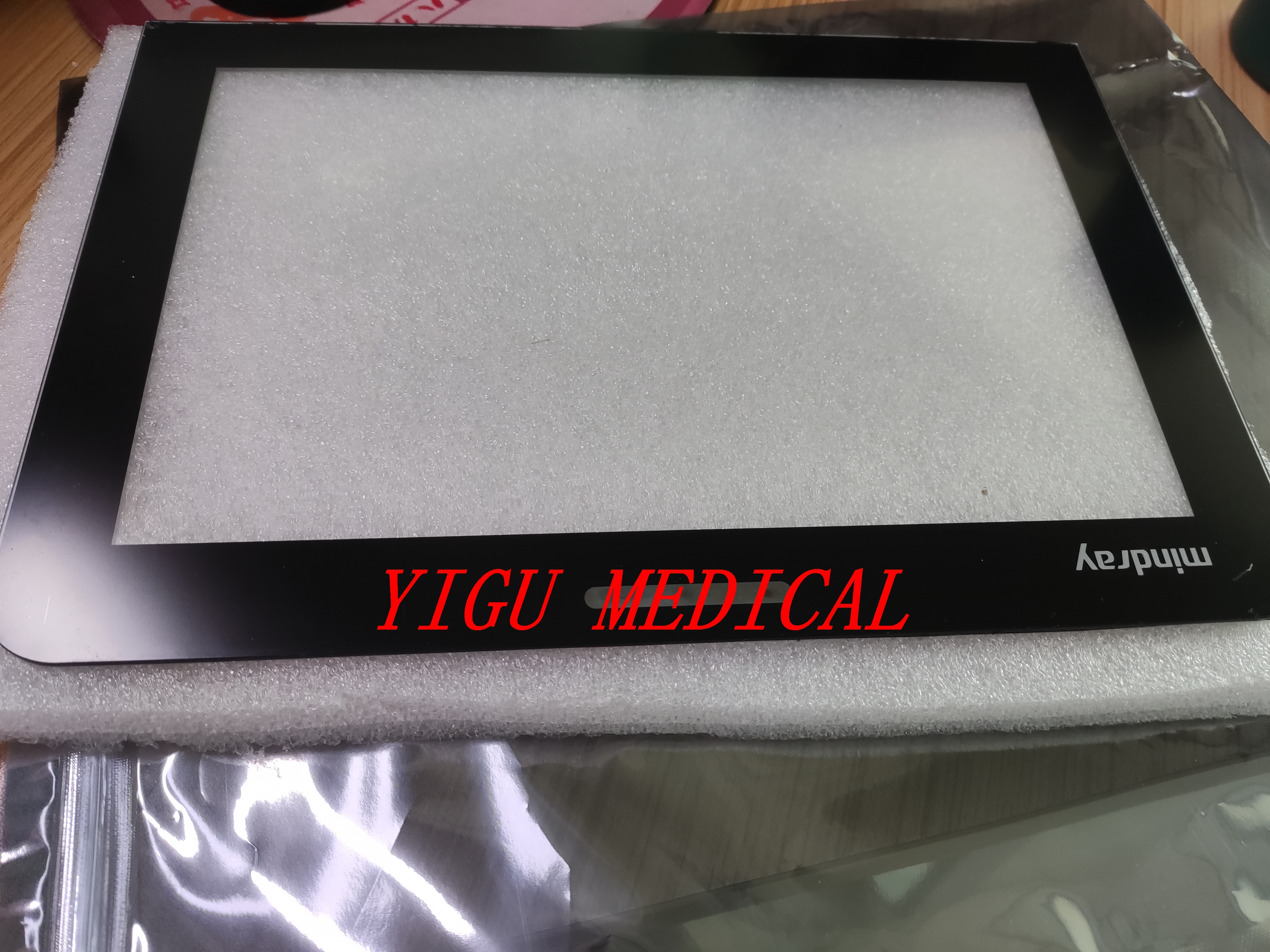

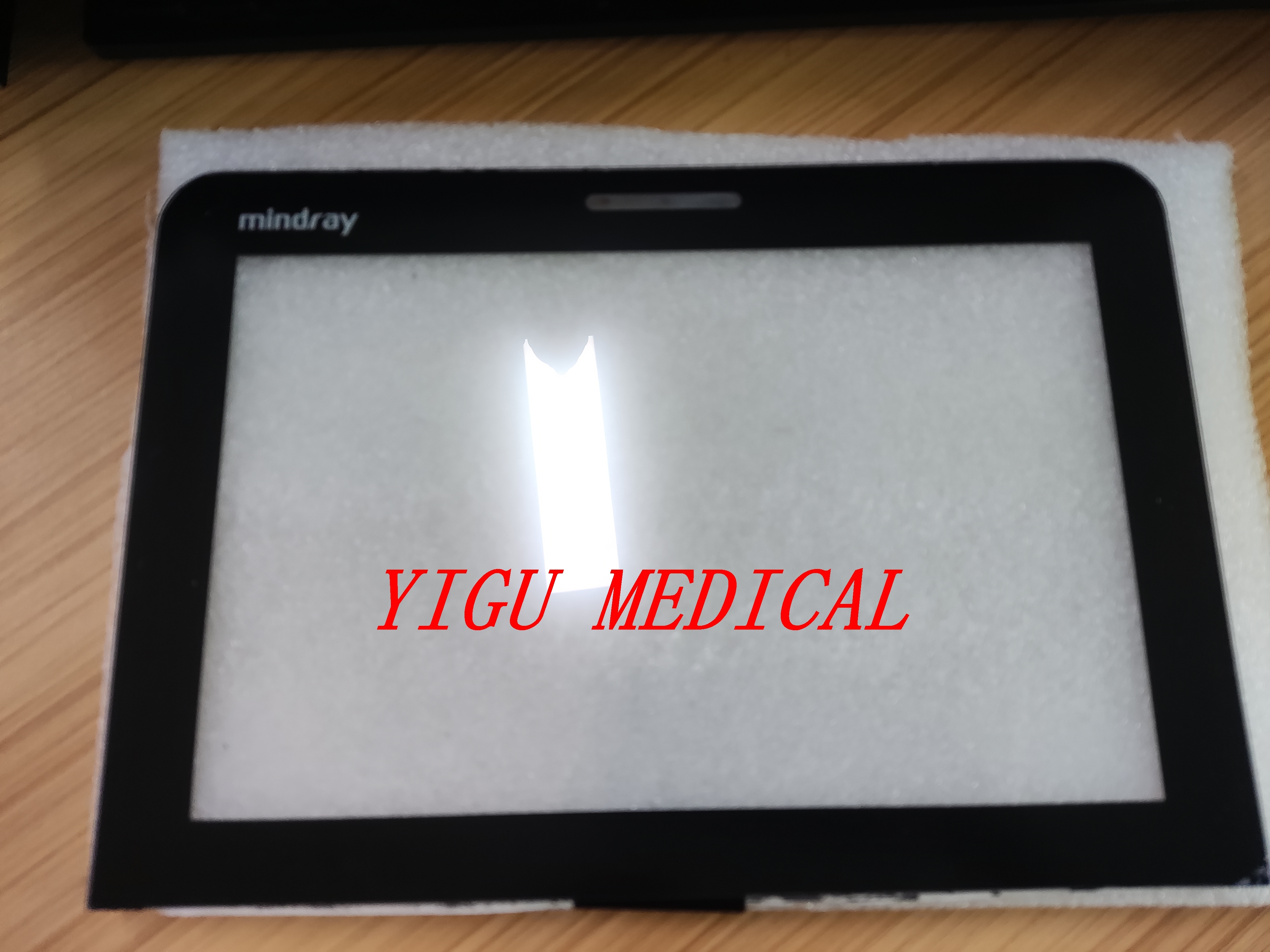

Mindray EPM10 Patient Monitor's Touch Screen with 90 days Warranty

Overview: The Primary User Interface

The touch screen on the **Mindray EPM10** patient monitor is an integral component that serves as the main point of interaction between the clinician and the device. It replaces or supplements traditional physical buttons and knobs with a modern, intuitive, and software-configurable interface for controlling all aspects of monitoring.

It's not just a display; it's a complex input system designed for the fast-paced clinical environment.

Key Functions and Features

1. **Primary User Input:**
* It allows clinicians to access menus, change settings, set alarm limits, freeze waveforms, and review trends directly by touching the screen.
* This provides a flexible interface where the controls can change contextually based on the selected parameter or mode.

2. **High-Resolution Display:**
* The screen displays all critical patient information simultaneously, including:
* Real-time waveforms (ECG, SpO₂, RESP, IBP, etc.)
* Numerical vital signs values (HR, NIBP, SpO₂, Temp)
* Alarm messages and settings
* Patient demographics
* Battery status and network connectivity

3. **Durability and Clinical Design:**
* **Type:** It is almost certainly a **Projected Capacitive (PCAP) touch screen**, which is the same technology used in modern smartphones and tablets. This technology offers:
* Excellent clarity and multi-touch capability.
* High sensitivity and responsiveness.
* Durability, as it is a solid glass surface without a moving membrane.
* **Protective Coating:** The screen features a robust, scratch-resistant glass coating to withstand constant cleaning and disinfection in a hospital setting.
* **Optical Bonding (Likely):** To enhance readability in bright environments (like ORs with strong lights), the LCD is often optically bonded to the touch glass. This process reduces internal reflection and glare, improving contrast and viewability from wide angles.

Common Components of the EPM10 Touch Screen Assembly

The "touch screen" is typically an integrated assembly consisting of several layers:

1. **Top Layer: Protective Glass**
* The hard, durable outer surface that is touched by users. It is treated with an **anti-glare** and **anti-fingerprint** coating.

2. **Touch Sensor Layer (The "Touch" Part):**
* A thin, transparent grid of electrodes (usually made of Indium Tin Oxide - ITO) that detects the presence and location of a finger's capacitive charge.

3. **LCD Display Panel (The "Screen" Part):**
* The actual TFT LCD that generates the images and data. It is a high-quality medical-grade display designed for accurate color representation and waveform clarity.

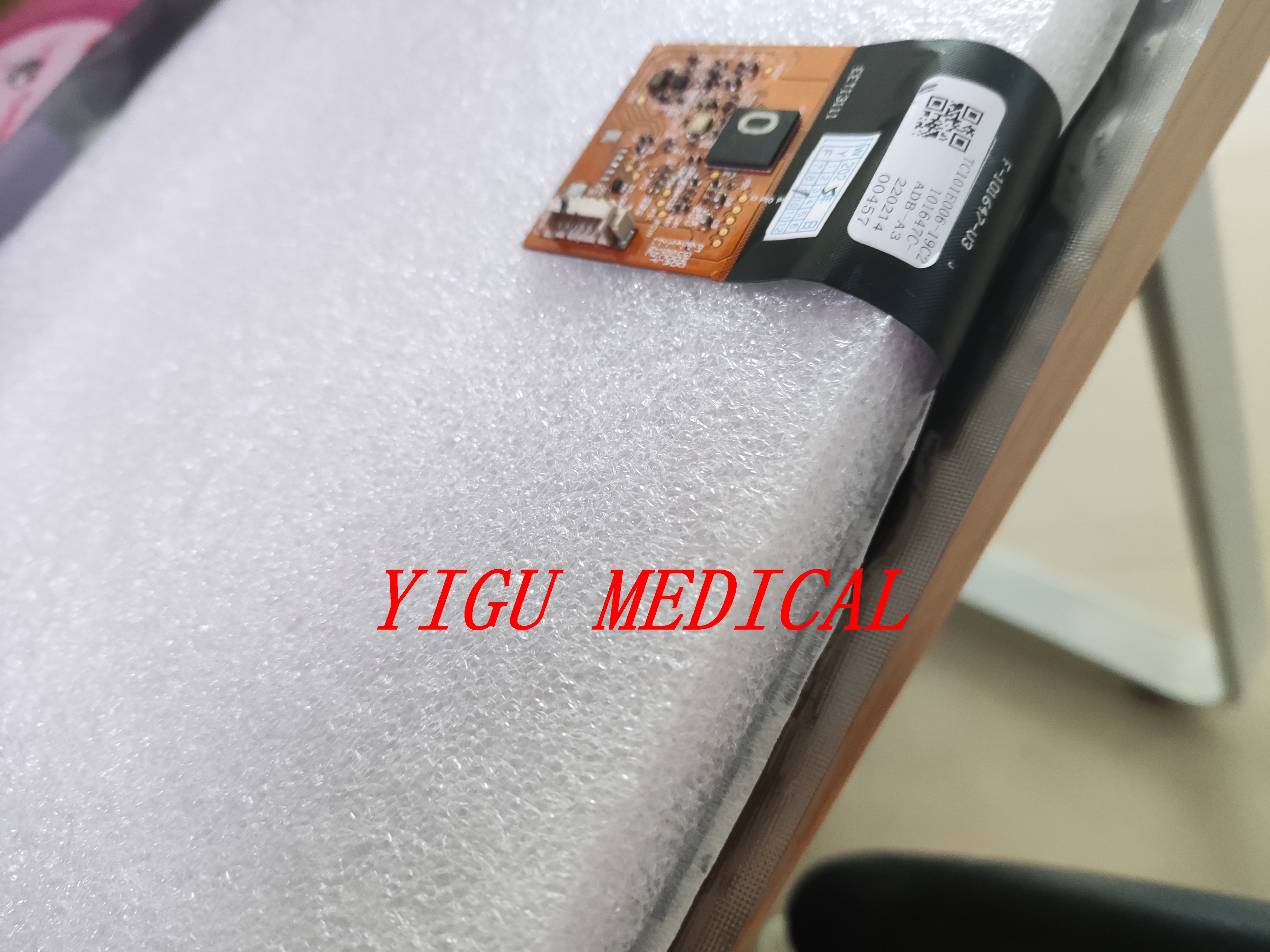

4. **Touch Screen Controller Board:**
* A small, dedicated circuit board that connects to the main sensor layer. Its job is to:
* Continuously scan the touch sensor for input.
* Digitize the touch location.
* Transmit this data to the monitor's mainboard via a standard interface (e.g., USB).

5. **LVDS/Display Cable:**
* A separate cable that carries the video signal from the monitor's mainboard to the LCD panel.

Common Issues and Failure Points

1. **Physical Damage:**
* **Cracks:** Impact damage can crack the outer glass. While the touch might still work in some areas, a cracked screen is a infection control risk and typically requires full replacement.
* **Delamination:** Over time or due to chemical exposure, the layers of the assembly can start to separate, causing bubbles or cloudy areas.

2. **Touch Function Failure:**
* **Calibration Drift:** The touch response becomes inaccurate (e.g., touching one icon activates another). This can often be corrected via a **touch calibration** routine in the service menu.
* **Complete Touch Failure:** The display works, but touch input does not. This is commonly caused by:
* A faulty **touch screen controller board**.
* A disconnected or damaged **touch sensor flex cable**.
* A failure on the mainboard to provide power or process the signal.

3. **Display Issues (Inherent to the LCD):**
* **Dead Pixels:** Pixels that are permanently off, appearing as black dots.
* **Screen Flickering or Artifacts:** Often caused by a faulty LCD panel, a loose LVDS cable, or a failing mainboard.
* **Backlight Failure:** The screen appears dim or completely dark, but you can faintly see the data with a flashlight. This indicates the LED backlights have failed.

Service and Maintenance Notes

*Cleaning:** Only use soft, lint-free cloths and hospital-grade disinfectants recommended by Mindray (typically isopropyl alcohol or hydrogen peroxide-based wipes). Avoid abrasive cloths and harsh chemicals.
* **Calibration:** If touch becomes inaccurate, a qualified biomedical technician can perform a touch screen recalibration using the device's hidden service menu.
* **Replacement Complexity:** Replacing the touch screen assembly is a specialized repair. It often requires disassembling the front bezel of the monitor and handling delicate connectors. **This should be performed by trained personnel.**
* **Integrated Unit:** For repair purposes, the touch screen, LCD, and sometimes the front bezel are often sold as a single, pre-assembled unit to ensure proper alignment and sealing.

In summary, the **Mindray EPM10 touch screen is a high-quality, medical-grade capacitive touch interface** designed for reliability, clarity, and intuitive operation in critical care environments. Its failure directly impacts the usability of the monitor, making it one of the most common user-replaceable components requiring professional service.
