Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty
Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty
Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty

Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty

Ürün ayrıntıları:
Marka adı: Mindray
Model numarası: EPM10
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Pazarlık edilebilir
Ambalaj bilgileri: Standart Normal Paket
Teslim süresi: 1-2 iş günü içinde
Ödeme koşulları: Banka havalesi, Western Union, PayPal
Yetenek temini: 10
Şimdi başvurun
  • Detay Bilgi
  • Ürün Açıklaması

Detay Bilgi
Modül: EPM10 Kategori: Hasta Monitörü Ana Kartı
Sevkiyat: DHL, EMS, UPS, ACS, FedEx Malzeme: maden
Öğe: Monitör Ana tahtası Miktar: Harika
Hizmet: Onarma ve Satış ve Değişim Teslimat: 1-3 iş günü içinde
Parça numarası: 051-004911-00 ödemeler: T/T, paypal veya western union
Durum: Mükemmel kalitede orijinal Ödeme: Banka havalesi, PayPal, Western Union
Vurgulamak:

Mindray EPM10 patient monitor motherboard

,

patient monitor motherboard with warranty

,

Mindray EPM10 motherboard 051-004911-00

Ürün Açıklaması

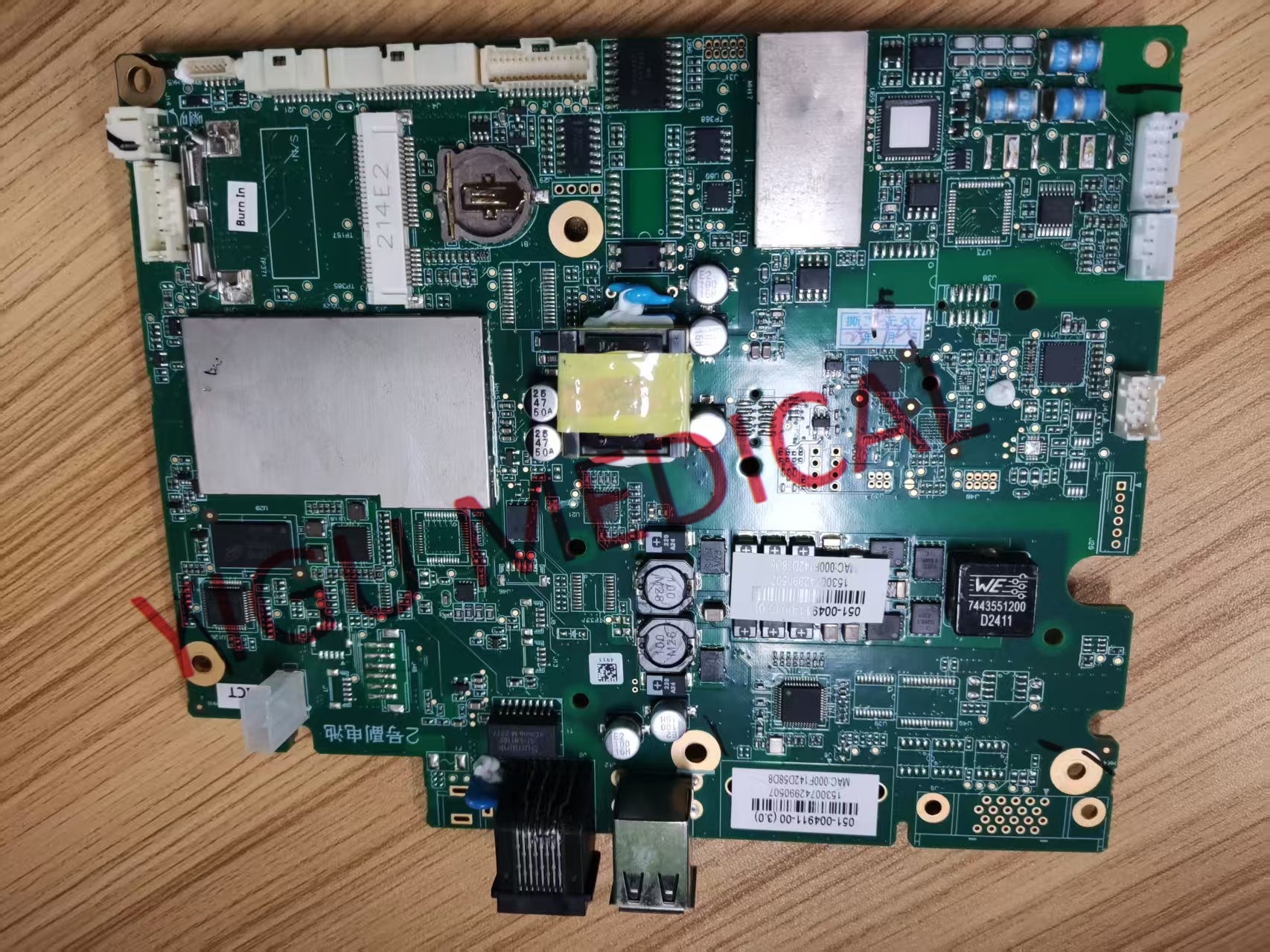

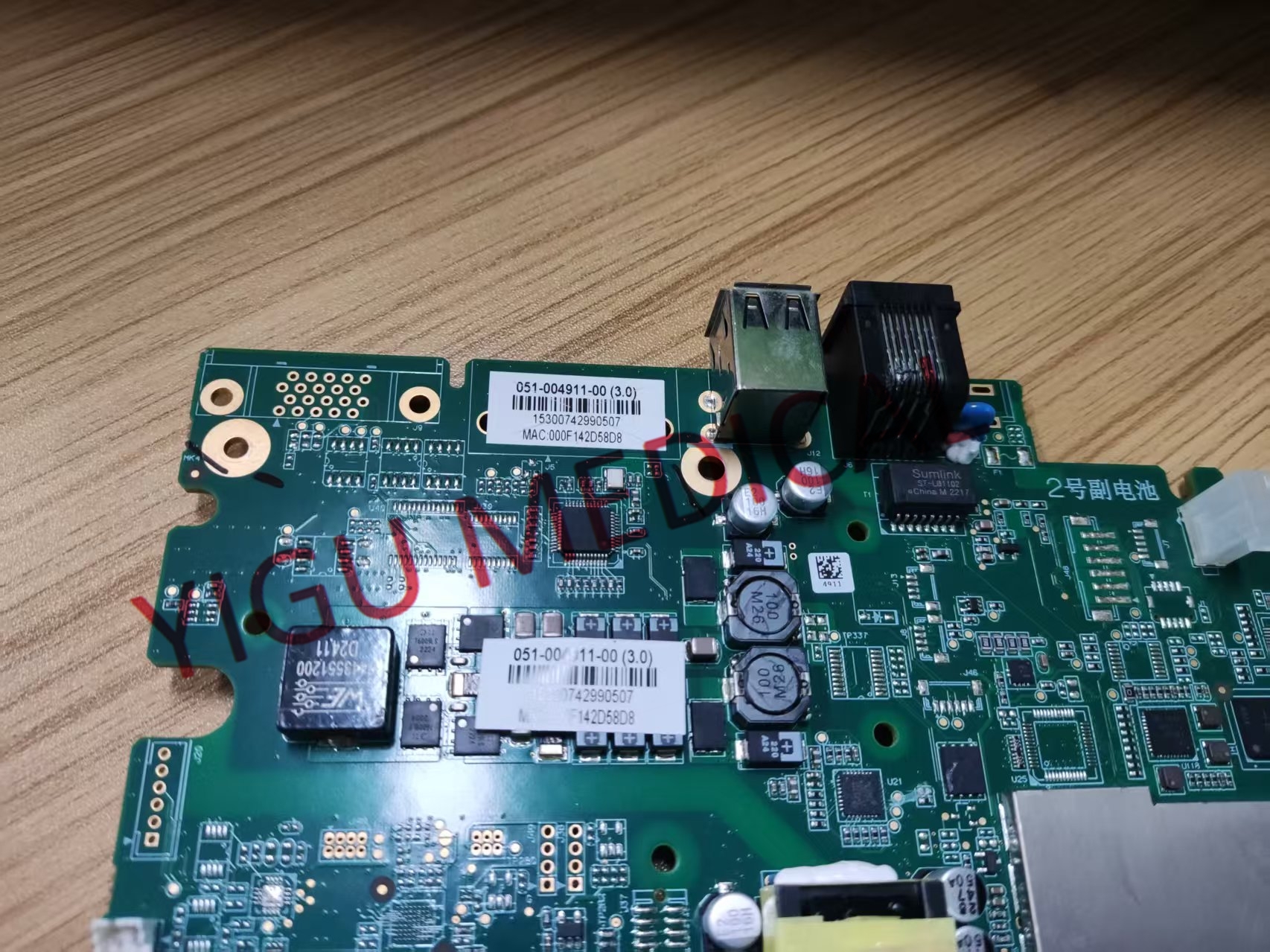

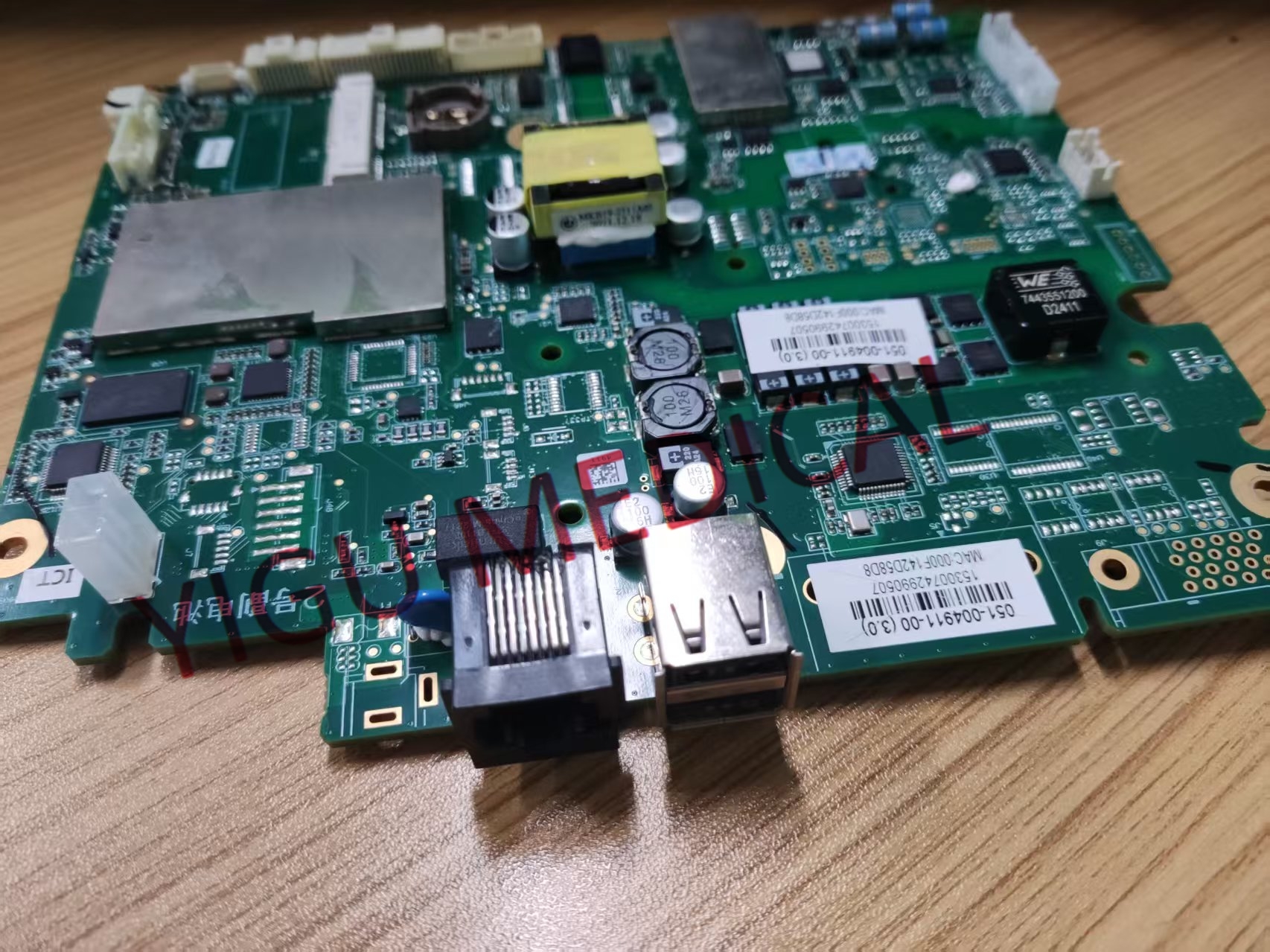

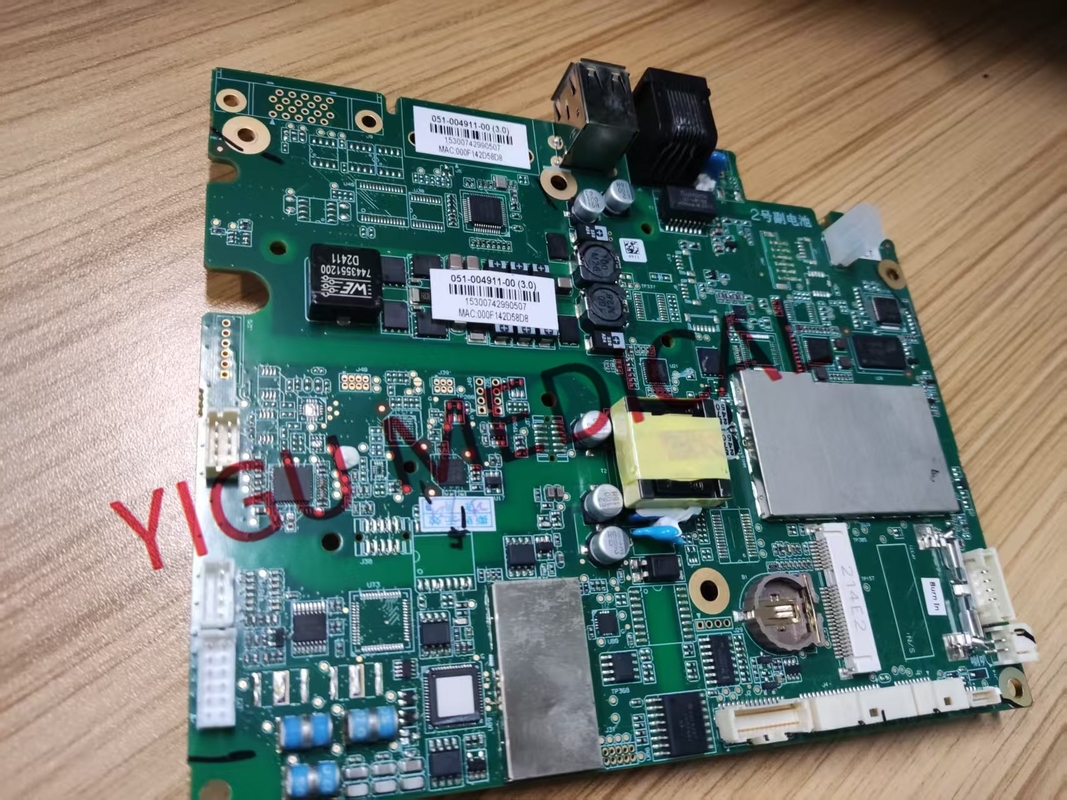

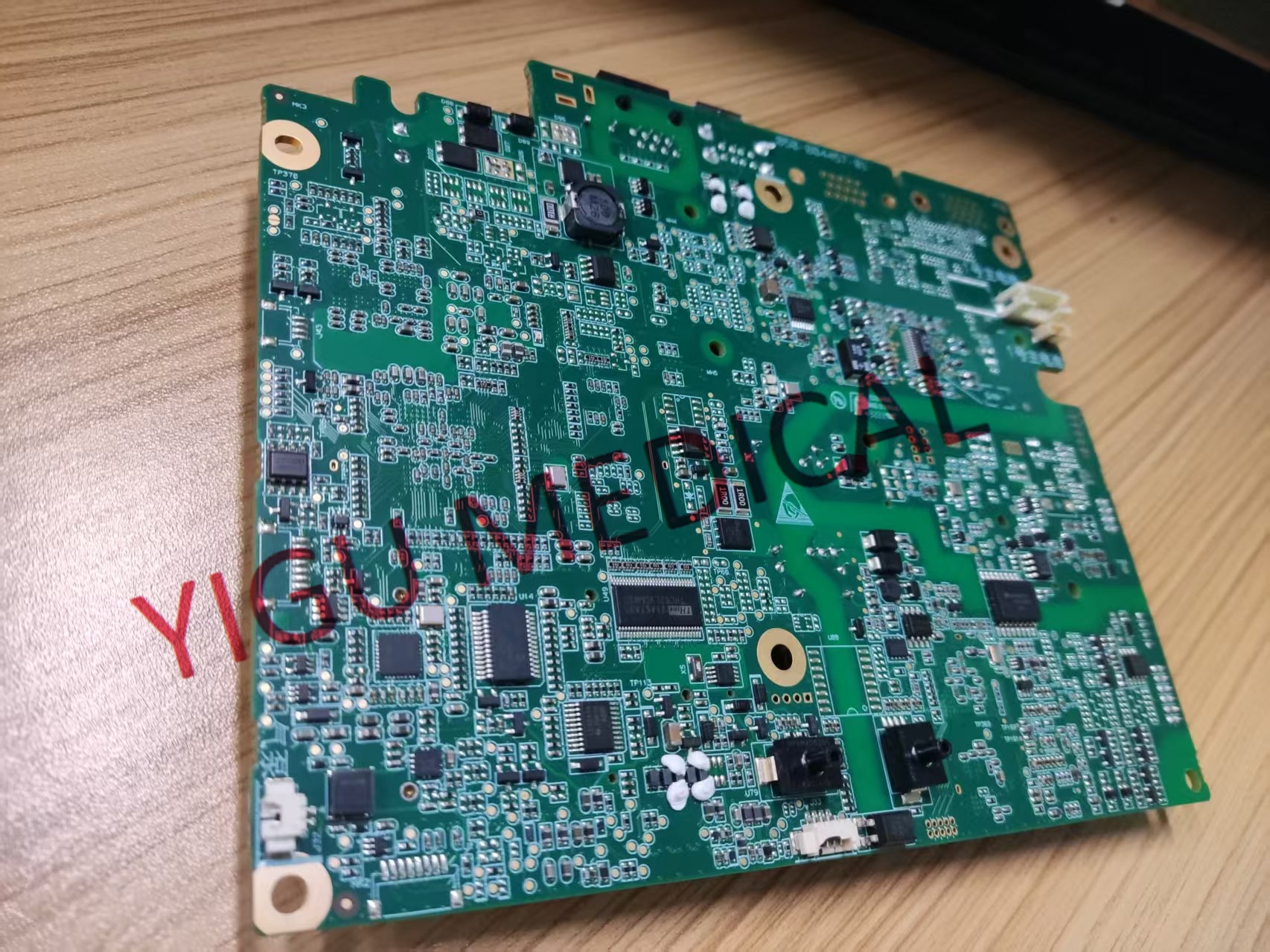

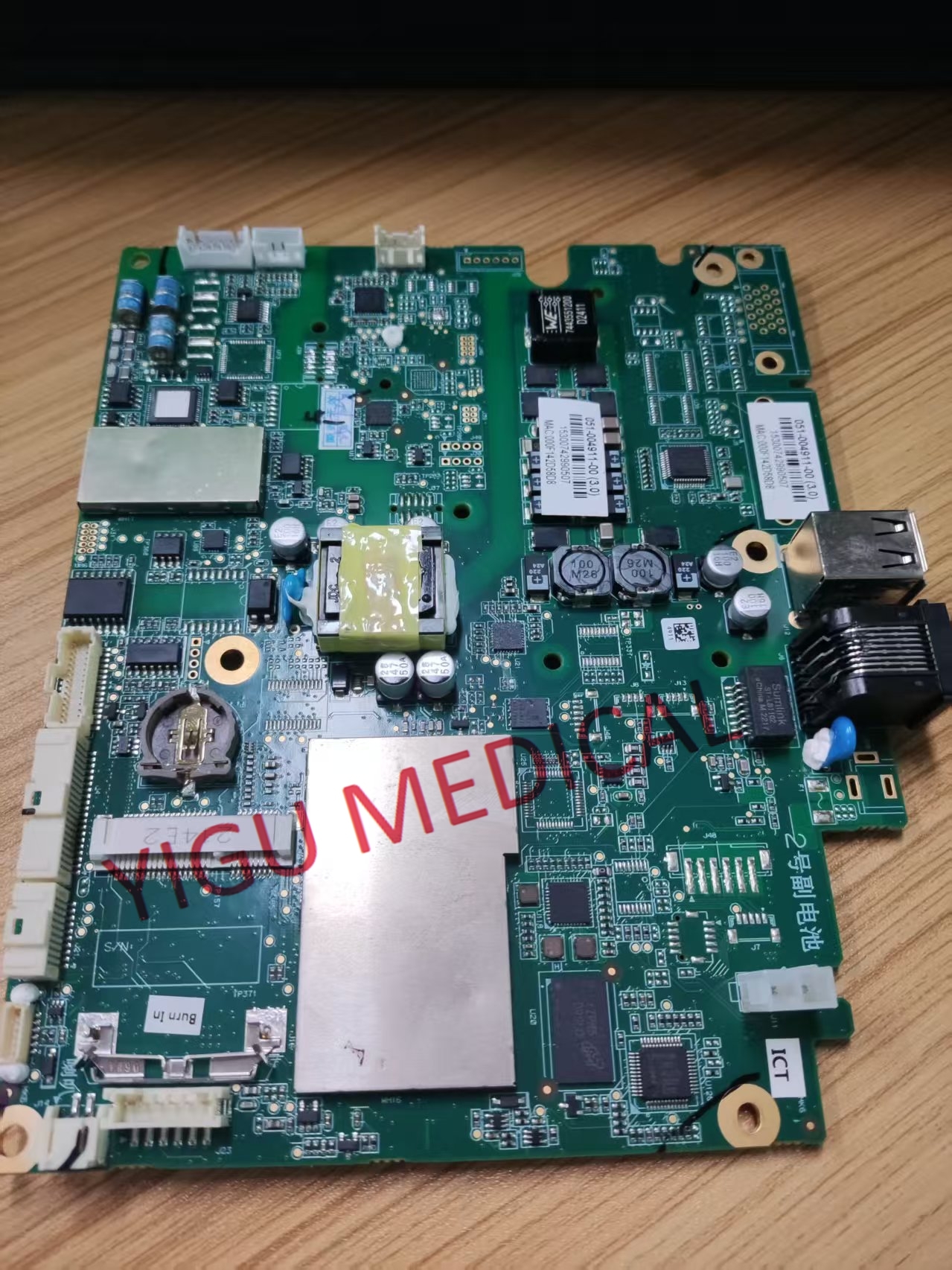

Mindray EPM10 Motherboard PN: 051-004911-00
This component serves as the central computing and control unit for the Mindray EPM10 Patient Monitor, a compact and versatile vital signs monitor used in various clinical settings. Includes 90-day warranty.
Product Overview
The Mindray EPM10 Motherboard is the primary printed circuit board (PCB) at the heart of the EPM10 monitor. It is responsible for integrating all the monitor's functions, processing data from connected parameters, running the operating system, and rendering the user interface. This medical-grade hardware is designed for reliability, accuracy, and continuous operation.
Key Features and Functions
  • Central Processing Unit (CPU): Integrated embedded-grade processor that handles all computational tasks including:
    • Running the real-time operating system
    • Processing waveforms (ECG, SpO₂, Respiration)
    • Calculating numerical values (Heart Rate, NIBP, SpO₂)
    • Managing system operations and alarms
  • System Memory (RAM): Onboard memory supporting smooth operation and simultaneous processing of multiple data streams
  • Graphical Processing and Display Output: Generates video signal for the integrated LCD screen and renders high-resolution graphical user interface
  • Connectivity and Integration: Provides critical interfaces for all components:
    • Internal connectors for front panel, display backlight, speaker, and parameter modules
    • Parameter ports for plug-in boards (ECG, SpO₂, NIBP, Temperature modules)
    • External ports including Network (RJ-45), USB, VGA output, and SD card slot
  • Storage: Non-volatile flash memory for firmware, operating system, configuration settings, and patient data trends
  • Medical-Grade Design: Engineered for 24/7 clinical operation with compliance to IEC 60601-1 safety standards
Critical Importance
Motherboard failure typically results in critical system failure. Symptoms may include failure to power on or boot up, blank or frozen screen, system error codes that cannot be cleared, or failure to recognize connected parameter modules.
Summary
The Mindray EPM10 Motherboard is the essential "brain" of the monitor. This sophisticated, medical-grade component integrates all monitoring functions, processes vital sign data, and delivers the user interface.
Mindray EPM10 motherboard PN:051-004911-00 with 90 Days warranty 0
